Standards et Protocoles IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

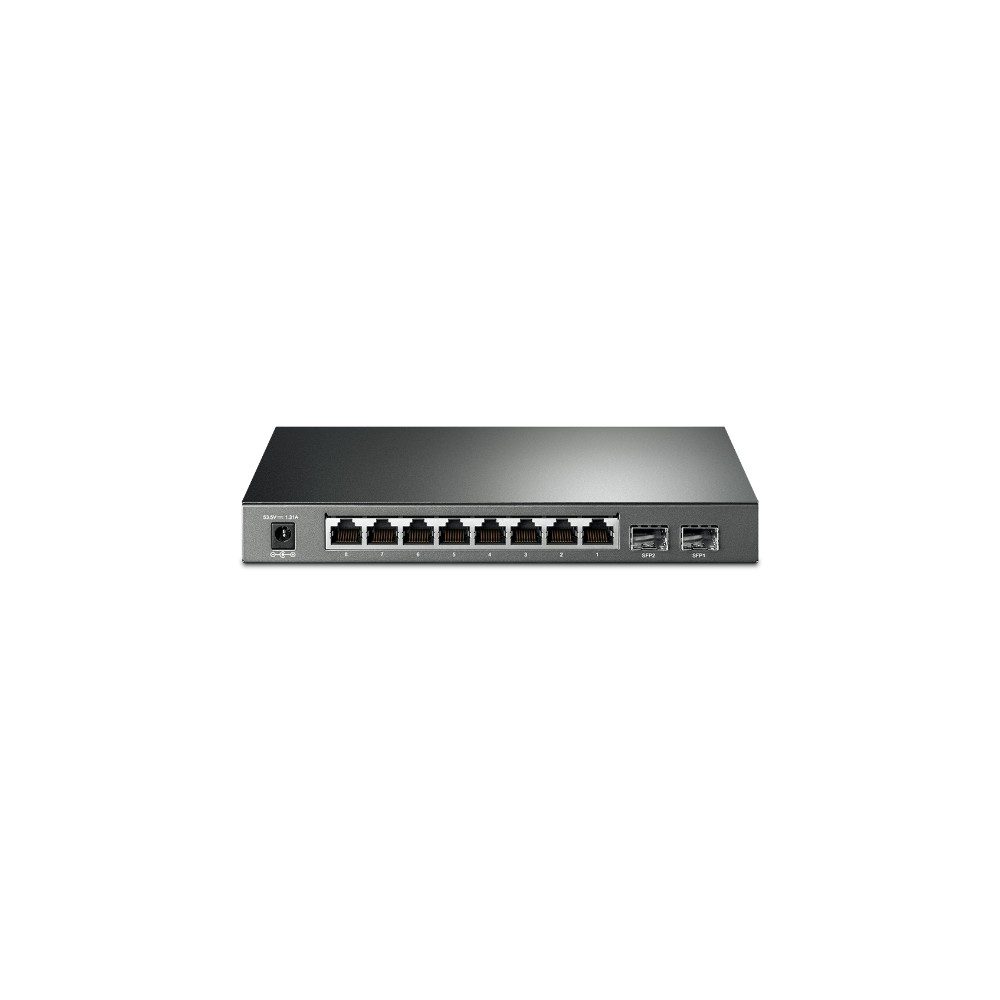

Interface 8 10/100/1000Mbps RJ45 Ports
2 1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX)
Interface réseau 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Nombre de ventilateurs Fanless
Alimentation 100~240VAC, 50/60Hz
External Power Adapter(Output: 48VDC/1.25A)
Consommation Maximum (PoE on): 63.4W (220V/50Hz)
Maximum (PoE off): 10.4W (220V/50Hz)
Ports PoE (RJ45) Standard: 802.3af compliant
PoE Ports: 8 Ports
Power Supply: 53W
Dimensions (LxPxH) 209 x 126 x 26mm
PERFORMANCES
Bande passante/ backplane 20Gbps
Taux de transfert de paquets 14.9Mpps
Tableau d’adresses MAC 8k
Mémoire tampon des paquets 512KB
Trame Géante 9216 Bytes
CARACTERISTIQUES LOGICIELLES
Qualité de Service QoS Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
Fonctions N2 et N2+ • 16 IP Interfaces
– Support IPv4/IPv6 Interface
• Static Routing
– 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
– DHCP Interface Relay
– DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
– Static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
– 802.1D STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Flow-Based
– Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Liste de contrôle d’accès L2～L4 package filtering based on source and destination
MAC address, IP address, TCP/UDP ports, 802.1p,
DSCP, protocol and VLAN ID
Time Range Based
Sécurité SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown unicast Storm Control
802.1x and Radius Authentication、IP-Mac-Port-VID Binding、ARP Inspection、DHCP Snooping、DoS Defend
Caractéristiques Switch Niveau 2 IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups,
containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
LLDP(LLDP-MED)
Administration Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
AUTRES
Certification CE, FCC, RoHS
Contenu de l’emballage TL-SG2210P
Power Adapter
Installation Guide
Resource CD
Rubber Feet
Système requis Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Environnement Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
